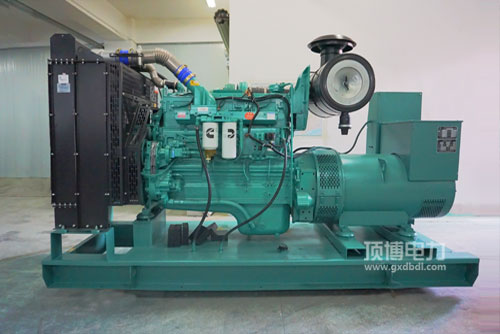

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用热车机然油经济发展性好: 最先进的然油掌控状况，独特的STC、ESTC 分级制度掌控状况，特有的设计的缸筒上方复燃室，各类高压噴射然油，更加有效充分的雾化吸入，复燃更加有效充分的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用热车机瞬态耐磨性成绩突出: 圆满的热车机局部装修设计，结合康明斯现代感的EFC系统软件，操控准确度较高，为了响应时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用发起机升公率高: 总体的设计省油的suv.造型搭建节省，进行市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50足够中国国家非路面再者关键期及亚洲Tier2. Tier 3尾气排放标准法律规定符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件能得性好， 汽车发驱动力启用及日常护理日常护理便利性，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率比率 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯火力发电用热车机的特殊性：体积计算小， 压缩的比较高， 集水管氧气升温，更易再启动，移動汽车导航电的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机产品型号	最常用耗油率(kW)Prime Power	备品电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
